The mighty Magni RTH 6.30

Our Mission

Our mission and number one priority at OZ Group Contracting is safety. With our Magni RTH 6.30 we can mechanically dismantle trees from a distance whilst maintaining full control. Any dead, dangerous and difficult removals or reductions can be done quickly and efficiently with low impact on the surrounding environment. The machine is calibrated at the factory to work in complete harmony with the Westtech saw head. All load charts and working envelopes are correct ensuring the machine is fully compliant for Arboriculture and forestry.

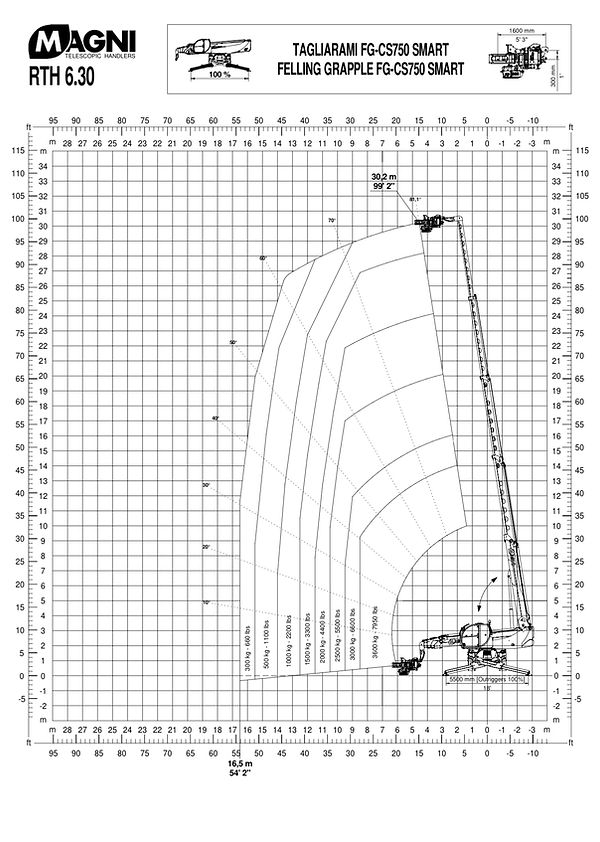

Image above: Working envelope with out riggers at full extension using the Wettech grapple saw.

Magni 6.30 Specs
​​​​

  • Forestry and Arb compliant

  • Lifting capacity: 6.000kg

  • Capacity at maximum height: 2.500kg

  • Lifting height 29,80 m

  • Lateral reach with forks 26 m

  • Lateral reach with Westtech Grapple Saw 16.5 m

  • Length 7.80 m

  • Width 2.53 m

  • Unleaden weight 21.800 kg

  •  Rotation 360 degrees (continuous)

  • Stabilisers: scissors

  • Lateral reach 16.5 m

  • Gradeability of 30-40 degrees

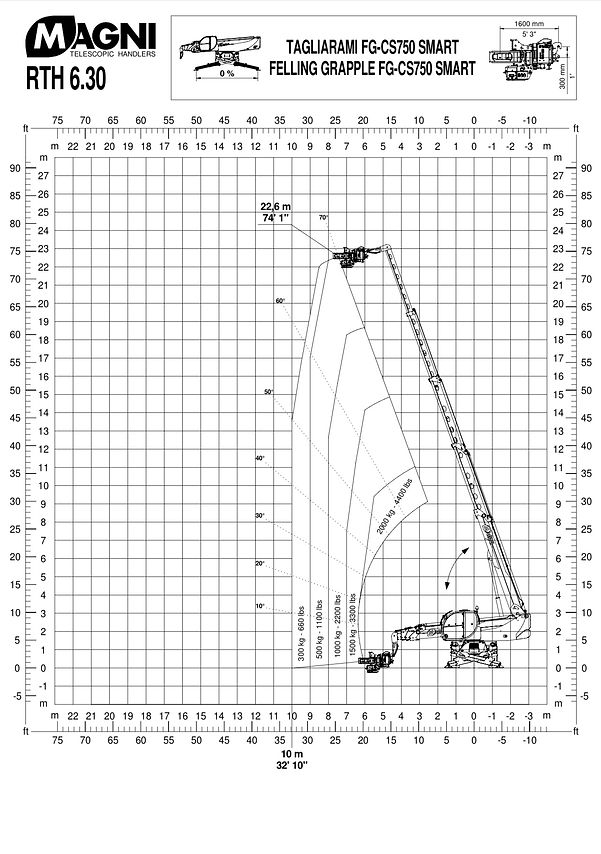

Image above- Working envelope with outriggers set at width of machine for highway work using Westtech grapple saw.
